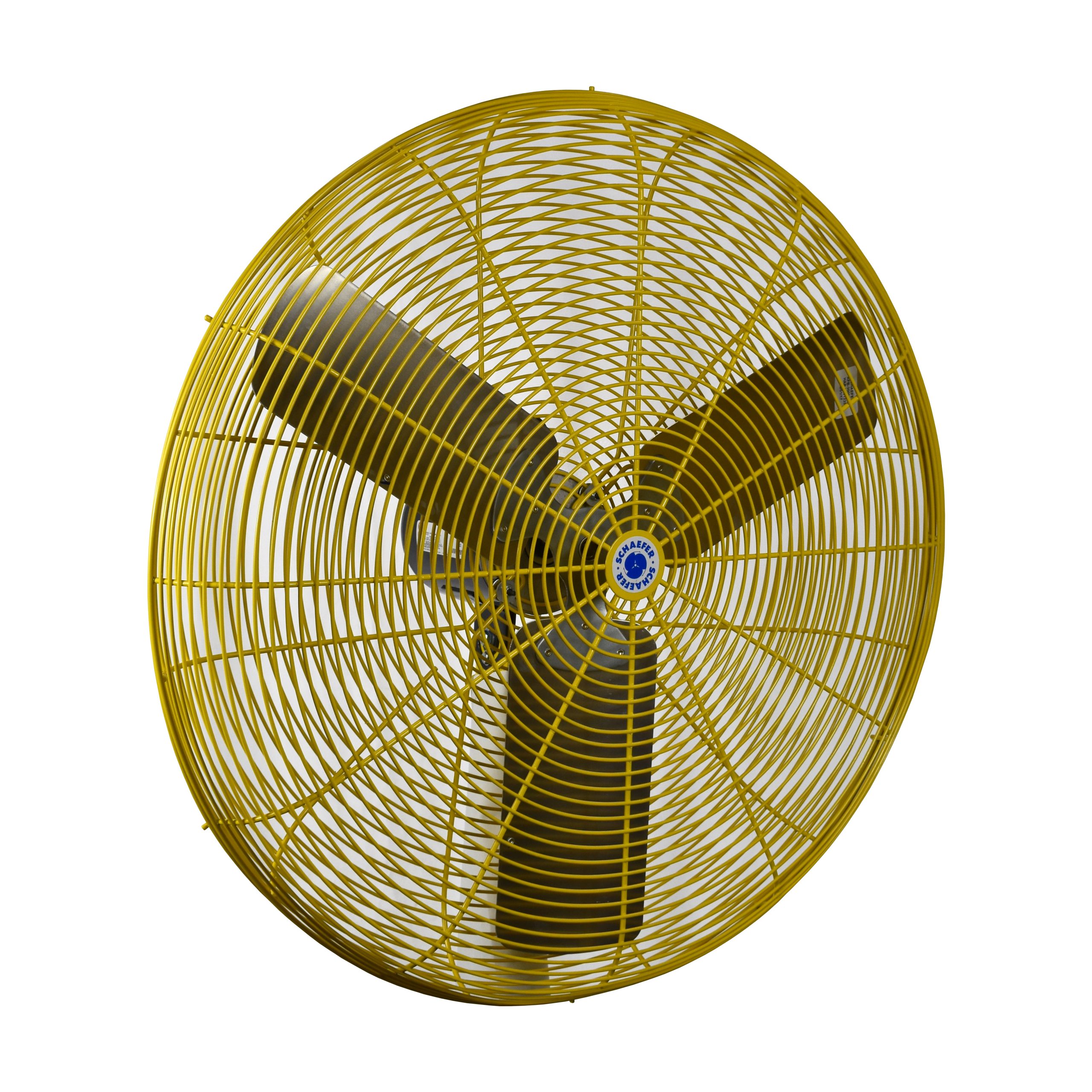

36CFO-YU

36CFO-YU

Print Spec Sheet

Features

Matched direct drive motors and blades ensure powerful performance with ratings up to 12,000 CFM

Powder-coated steel guards resist corrosion, extending product life

Built for cost-effective performance with energy-efficient design; draws as little as 1.6 amps

Thermally protected, heavy-duty, maintenance free 2-speed motors for reliability and long service life

Two year warranty

Made in the USA

Specifications

Blade Color: Metallic

Brand: Schaefer

Cfm (free Air): 12120

Rpm 60 Hz Motor: 1075

Diameter (cm): 91.4

Drive: Direct

Enclosure: TEAO

Frame Size: 48YZ

Hardware Included: Yes

Housing Material: Steel

Operating Temperature (high) F: 104F

Phase: 1

Product Dimensions (l X W X H Cm): 102.87 x 102.87 x 36.2

Product Weight (gross Kg / Net Kg): 27.22/26.76

Shaft Diameter (inches): 0.5

Speeds: 2

Watts: 598

Cfm/watt (free Air): 23.3

Cord: Included - Wired

Diameter (inches): 36

Fan Diameter Range (inches): 36

Frequency (hz): 60

Guard Color: Yellow

Insulation Class: B

Nameplate Amps: 5.2

Number Of Wings: 3

Air Flow (cmh): 20592

Bore Size (inches): 1/2

Operating Temperature (low) F: 30F

Power (hp): 1/2

Product Dimensions (l X W X H Inches): 40.5 x 40.5 x 14.25

Product Net Weight (lbs): 59

Switch: On product

Voltage: 115

Motor Mounting: Yoke

Material: Steel

Maximum Rpm: 1075

Blade Material: Galvanized Steel

Cfm (high): 12120

Cfm Calculation Standard: ANSI/AMCA Standard 230-99

Pallet Quantity: 5

Product Color: Yellow

Product Shipping Dimensions (in): 41 x 41 x 15

Able To Ship Small Parcel: No

Blade Pitch (degrees): 14

Cfm (low): 8750

Cfm Range (free Air): 10001 - 15000

Cord Length (feet): 10

Fixed Or Portable: Fixed

Guard Material: Powder Coated Steel

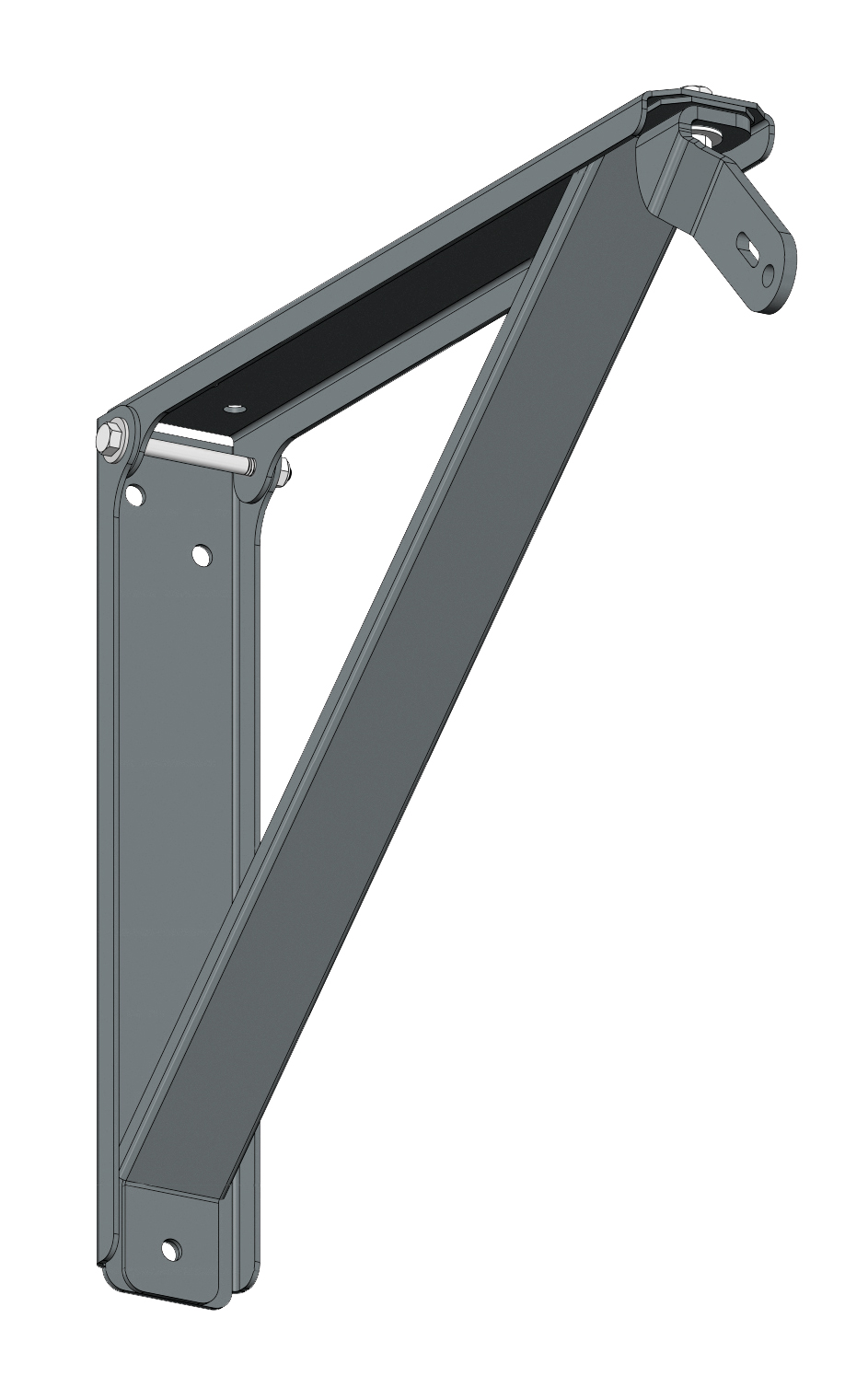

Mount Type Recommended: WM36D-Y, VS36FMT, PED36R-YU

Thermal Protection: Yes

Country Of Origin: US

Guard Spacing (inches): 1/2 OSHA

Housing Color: Yellow
